Solidus
Dry solidus

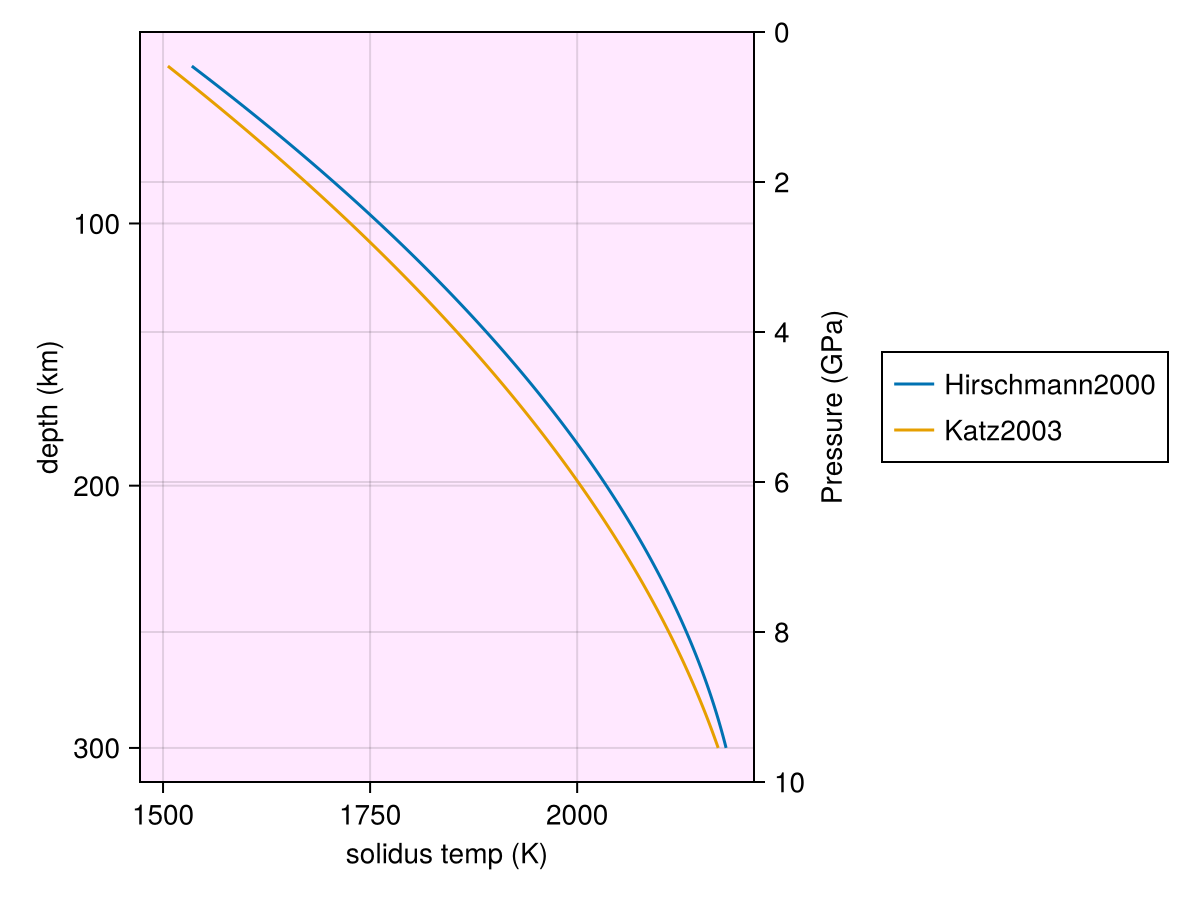

The dry solidus temperature can be obtained as a function of pressure P through solidus_Hirschmann2000 and solidus_Katz2003.
Code for this figure
julia
f = Figure()
ax1 = Axis(f[1, 1]; xlabel="solidus temp (K)", ylabel="depth (km)", backgroundcolor=(
:magenta, 0.05))
ax1.yreversed = true
xtfn(x) = @. string(round((x - 5) / 30.2; digits=2))
ax2 = Axis(f[1, 1]; ylabel="Pressure (GPa)", yaxisposition=:right, xaxisposition=:top,
xtickformat=xtfn, backgroundcolor=(:magenta, 0.05), yticks=WilkinsonTicks(6; k_min=5))
hidespines!(ax2)
hidexdecorations!(ax2)
linkxaxes!(ax1, ax2)
ax2.yreversed = true
z = 40:300
P = @. (z - 5) / 30.2
ps_nt = (; P)
sol_h = solidus_Hirschmann2000(ps_nt).T_solidus
sol_k = solidus_Katz2003(ps_nt).T_solidus
lines!(ax1, sol_h, z; label="Hirschmann2000")
lines!(ax1, sol_k, z; label="Katz2003")
f[1, 2] = Legend(f, ax1)
Effect of volatiles
Addition of volatiles lowers the solidus temperature facilitating more melting.
Water

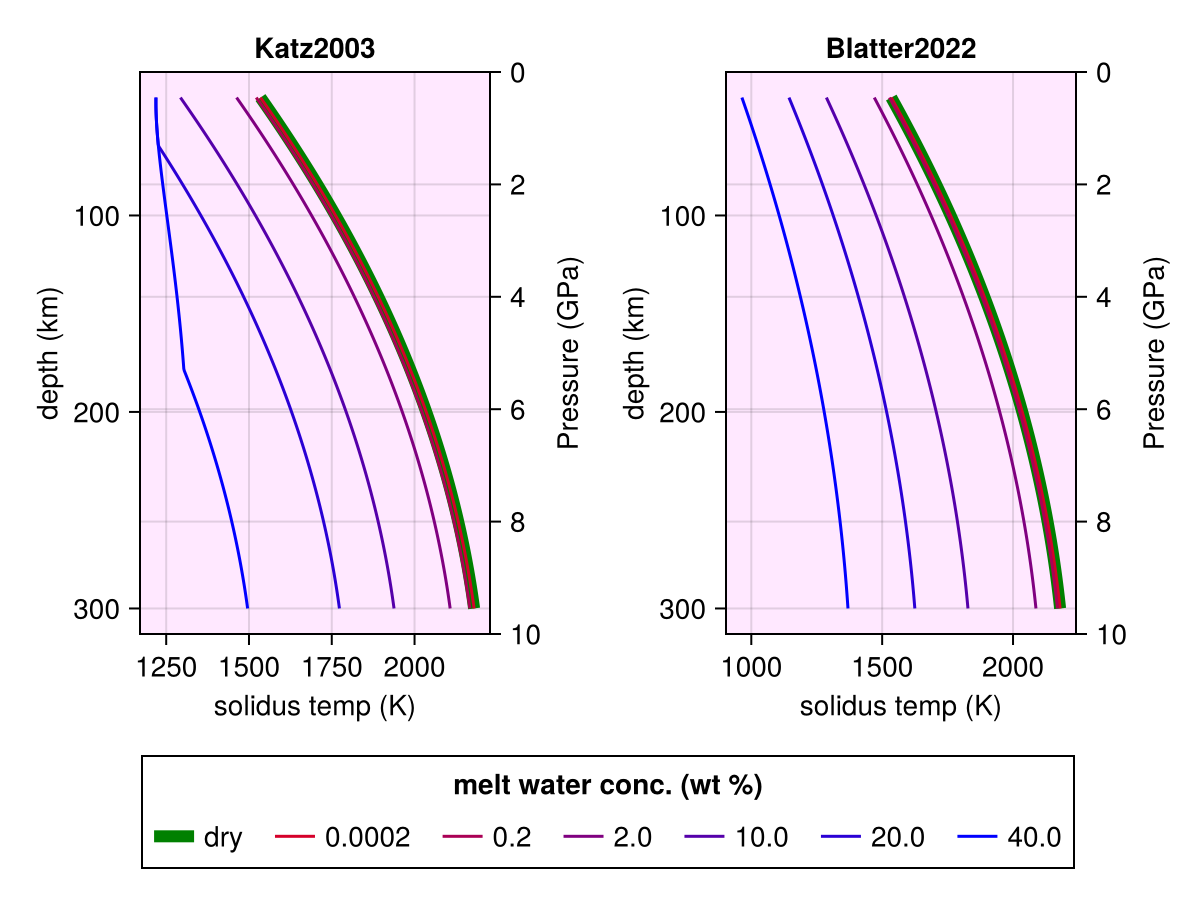

Lowering of solidus due to water is available through ΔT_h2o_Katz2003 and ΔT_h2o_Blatter2022:
Code for this figure
julia
f = Figure()
ax1 = Axis(f[1, 1]; xlabel="solidus temp (K)", ylabel="depth (km)",
backgroundcolor=(:magenta, 0.05), title="Katz2003")
ax1.yreversed = true
xtfn(x) = @. string(round((x - 5) / 30.2; digits=2))
ax2 = Axis(f[1, 1]; ylabel="Pressure (GPa)", yaxisposition=:right, xaxisposition=:top,
xtickformat=xtfn, backgroundcolor=(:magenta, 0.05), yticks=WilkinsonTicks(6; k_min=5))
hidespines!(ax2)
hidexdecorations!(ax2)
linkxaxes!(ax1, ax2)
ax2.yreversed = true
ax3 = Axis(f[1, 2]; xlabel="solidus temp (K)", ylabel="depth (km)",
backgroundcolor=(:magenta, 0.05), title="Blatter2022")
ax3.yreversed = true
xtfn(x) = @. string(round((x - 5) / 30.2; digits=2))
ax4 = Axis(f[1, 2]; ylabel="Pressure (GPa)", yaxisposition=:right, xaxisposition=:top,
xtickformat=xtfn, backgroundcolor=(:magenta, 0.05), yticks=WilkinsonTicks(6; k_min=5))
hidespines!(ax4)
hidexdecorations!(ax4)
linkxaxes!(ax3, ax4)
ax4.yreversed = true
z = 40:300
P = @. (z - 5) / 30.2
ps_nt = (; P)
T_solidus = solidus_Hirschmann2000(ps_nt).T_solidus
Ch2o_m = inv(0.005) .* [0.01, 10.0, 100.0, 500.0, 1000.0, 2000.0]'
ps_nt = (; P, T_solidus, Ch2o_m)
T_wet_k = ΔT_h2o_Katz2003((; ps_nt..., T_solidus)).T_solidus
lines!(ax1, T_solidus, z; label="dry", color=:green, linewidth=6)
for i in eachindex(Ch2o_m)
color_ = RGBf(1 - i / length(Ch2o_m), 0.0, i / length(Ch2o_m))
w = Ch2o_m[i]
lines!(ax1, T_wet_k[:, i], z; label="$(w/1f4)", color=color_)
end
T_wet_b = ΔT_h2o_Blatter2022((; ps_nt..., T_solidus)).T_solidus
lines!(ax3, T_solidus, z; label="dry", color=:green, linewidth=6)
for i in eachindex(Ch2o_m)
color_ = RGBf(1 - i / length(Ch2o_m), 0.0, i / length(Ch2o_m))
w = Ch2o_m[i]
lines!(ax3, T_wet_b[:, i], z; label="$(w/1f4)", color=color_)
end
f[2, 1:2] = Legend(f, ax1, "melt water conc. (wt %)"; orientation=:horizontal)
CO₂

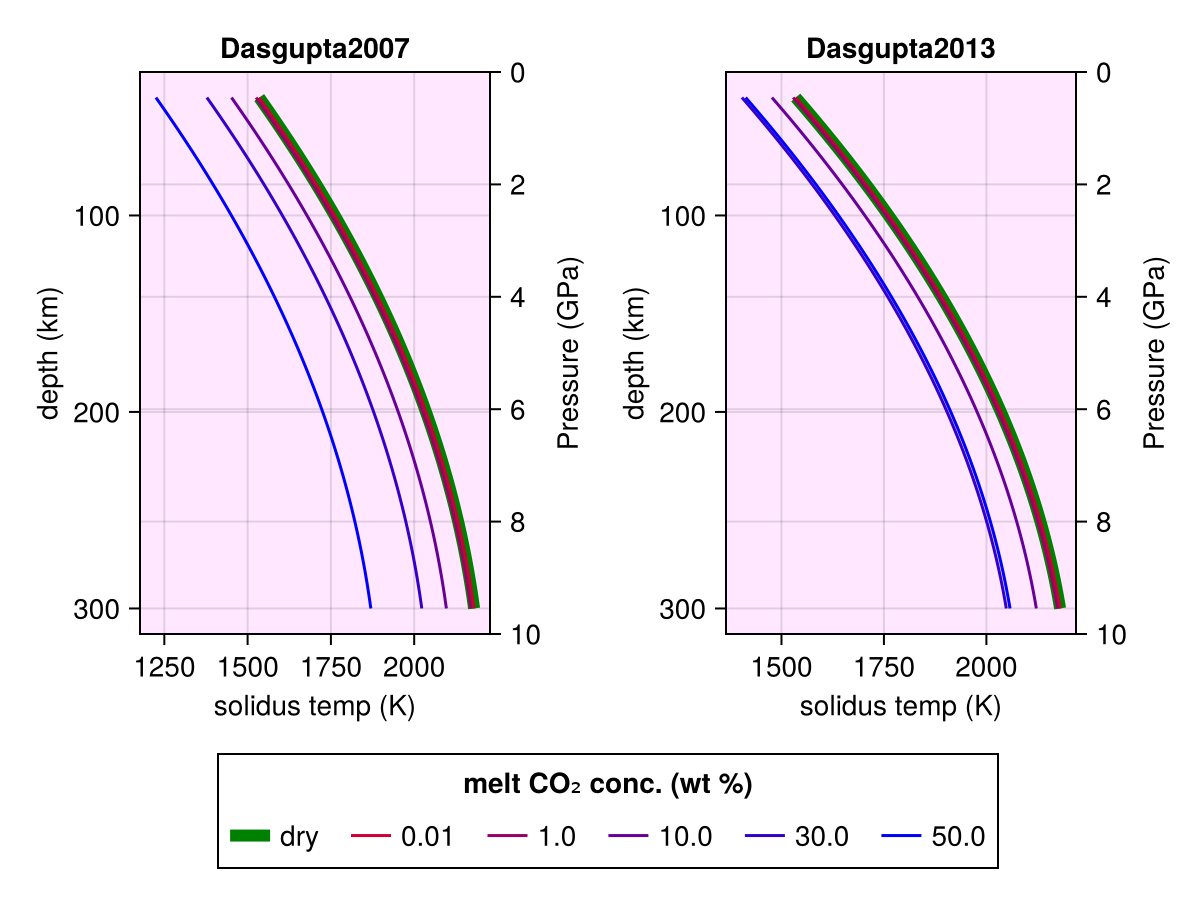

Lowering of solidus due to CO₂ is available through ΔT_co2_Dasgupta2007 and ΔT_co2_Dasgupta2013:
Code for this figure
julia
f = Figure()
ax1 = Axis(f[1, 1]; xlabel="solidus temp (K)", ylabel="depth (km)",
backgroundcolor=(:magenta, 0.05), title="Dasgupta2007")
ax1.yreversed = true
xtfn(x) = @. string(round((x - 5) / 30.2; digits=2))
ax2 = Axis(f[1, 1]; ylabel="Pressure (GPa)", yaxisposition=:right, xaxisposition=:top,
xtickformat=xtfn, backgroundcolor=(:magenta, 0.05), yticks=WilkinsonTicks(6; k_min=5))
hidespines!(ax2)
hidexdecorations!(ax2)
linkxaxes!(ax1, ax2)
ax2.yreversed = true
ax3 = Axis(f[1, 2]; xlabel="solidus temp (K)", ylabel="depth (km)",
backgroundcolor=(:magenta, 0.05), title="Dasgupta2013")
ax3.yreversed = true
xtfn(x) = @. string(round((x - 5) / 30.2; digits=2))
ax4 = Axis(f[1, 2]; ylabel="Pressure (GPa)", yaxisposition=:right, xaxisposition=:top,
xtickformat=xtfn, backgroundcolor=(:magenta, 0.05), yticks=WilkinsonTicks(6; k_min=5))
hidespines!(ax4)
hidexdecorations!(ax4)
linkxaxes!(ax3, ax4)
ax4.yreversed = true
z = 40:300
P = @. (z - 5) / 30.2
ps_nt = (; P)
T_solidus = solidus_Hirschmann2000(ps_nt).T_solidus
Cco2_m = 1e4 .* [0.01, 1.0, 10.0, 30.0, 50.0]'
ps_nt = (; P, T_solidus, Cco2_m)
T_wet_k = ΔT_co2_Dasgupta2007((; ps_nt..., T_solidus)).T_solidus
lines!(ax1, T_solidus, z; label="dry", color=:green, linewidth=6)
for i in eachindex(Cco2_m)
color_ = RGBf(1 - i / length(Cco2_m), 0.0, i / length(Cco2_m))
w = Cco2_m[i]
lines!(ax1, T_wet_k[:, i], z; label="$(w/1f4)", color=color_)
end
T_wet_b = ΔT_co2_Dasgupta2013((; ps_nt..., T_solidus)).T_solidus
lines!(ax3, T_solidus, z; label="dry", color=:green, linewidth=6)
for i in eachindex(Cco2_m)
color_ = RGBf(1 - i / length(Cco2_m), 0.0, i / length(Cco2_m))
w = Cco2_m[i]
lines!(ax3, T_wet_b[:, i], z; label="$(w/1f4)", color=color_)
end
f[2, 1:2] = Legend(f, ax1, "melt CO₂ conc. (wt %)"; orientation=:horizontal)
Stable melt fraction

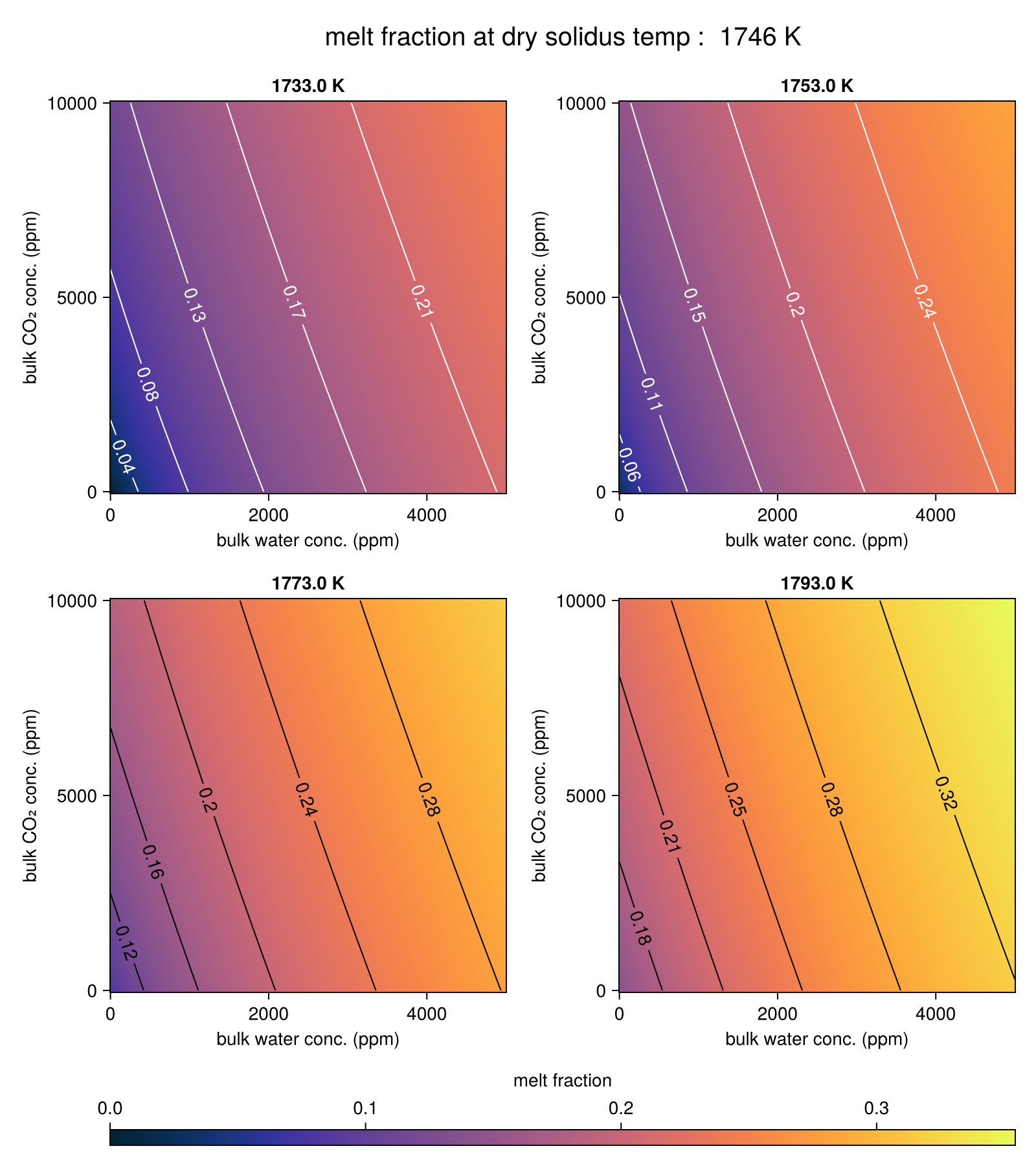

Addition of volatiles lowers the solidus, generating more melt. The partitioning of volatiles into melt would, however, require knowing about the melt fraction beforehand. We, therefore, follow Blatter, et al., 2022 to estimate the amount of thermodynamically stable melt using get_melt_fraction.
Code for this figure
julia
P = 3.0
T_solidus = solidus_Hirschmann2000((; P)).T_solidus
T = [1460, 1480, 1500, 1520] .+ 273.0
D = 0.0093
Ch2o = reshape(collect(0.0:10:5000.0), 1, :)
Cco2 = reshape(collect(0.0:100:10000.0), 1, 1, :)
ps_nt = (; P, T, T_solidus, Ch2o, Cco2, D)
ϕ = get_melt_fraction(ps_nt).ϕ;
size(ϕ)
fig = Figure(; size=(800, 900))
ax1 = Axis(fig[1, 1]; xlabel="bulk water conc. (ppm)", ylabel="bulk CO₂ conc. (ppm)", title="$(T[1]) K")
ax2 = Axis(fig[1, 2]; xlabel="bulk water conc. (ppm)", ylabel="bulk CO₂ conc. (ppm)", title="$(T[2]) K")
ax3 = Axis(fig[2, 1]; xlabel="bulk water conc. (ppm)", ylabel="bulk CO₂ conc. (ppm)", title="$(T[3]) K")
ax4 = Axis(fig[2, 2]; xlabel="bulk water conc. (ppm)", ylabel="bulk CO₂ conc. (ppm)", title="$(T[4]) K")
crange = extrema(ϕ)
cmap = :thermal
heatmap!(ax1, vec(Ch2o), vec(Cco2), ϕ[1, :, :]; colorrange=crange, colormap=cmap)
contour!(ax1, vec(Ch2o), vec(Cco2), ϕ[1, :, :]; labels=true, color=:white, labelsize=14)
heatmap!(ax2, vec(Ch2o), vec(Cco2), ϕ[2, :, :]; colorrange=crange, colormap=cmap)
contour!(ax2, vec(Ch2o), vec(Cco2), ϕ[2, :, :]; labels=true, color=:white, labelsize=14)
heatmap!(ax3, vec(Ch2o), vec(Cco2), ϕ[3, :, :]; colorrange=crange, colormap=cmap)
contour!(ax3, vec(Ch2o), vec(Cco2), ϕ[3, :, :]; labels=true, color=:black, labelsize=14)
h = heatmap!(ax4, vec(Ch2o), vec(Cco2), ϕ[4, :, :]; colorrange=crange, colormap=cmap)
contour!(ax4, vec(Ch2o), vec(Cco2), ϕ[4, :, :]; labels=true, color=:black, labelsize=14)
Colorbar(fig[3, :], h; vertical=false, label="melt fraction")
Label(fig[0, :], "melt fraction at dry solidus temp : $(Int(round(T_solidus))) K"; fontsize=20)
