DC (Direct Current) Resistivity

Model

We assume the following subsurface resistivity distribution with 4 layers:

Layer #	thickness (m)	$\rho (\mathrm{\Omega }m$)
1	100	500
2	200	1000
3	20	10
4	$\mathrm{\infty }$	100

The DCModel is defined as :

ρ = log10.([500.0, 1000.0, 10.0, 100.0])
h = [100.0, 200.0, 20.0]
m = DCModel(ρ, h)

1D DC Resistivity Model
┌───────┬───────┬────────┬────────┐
│ Layer │ log-ρ │      h │      z │
│       │  [Ωm] │    [m] │    [m] │
├───────┼───────┼────────┼────────┤
│     1 │  2.70 │ 100.00 │ 100.00 │
│     2 │  3.00 │ 200.00 │ 300.00 │
│     3 │  1.00 │  20.00 │ 320.00 │
│     4 │  2.00 │      ∞ │      ∞ │
└───────┴───────┴────────┴────────┘

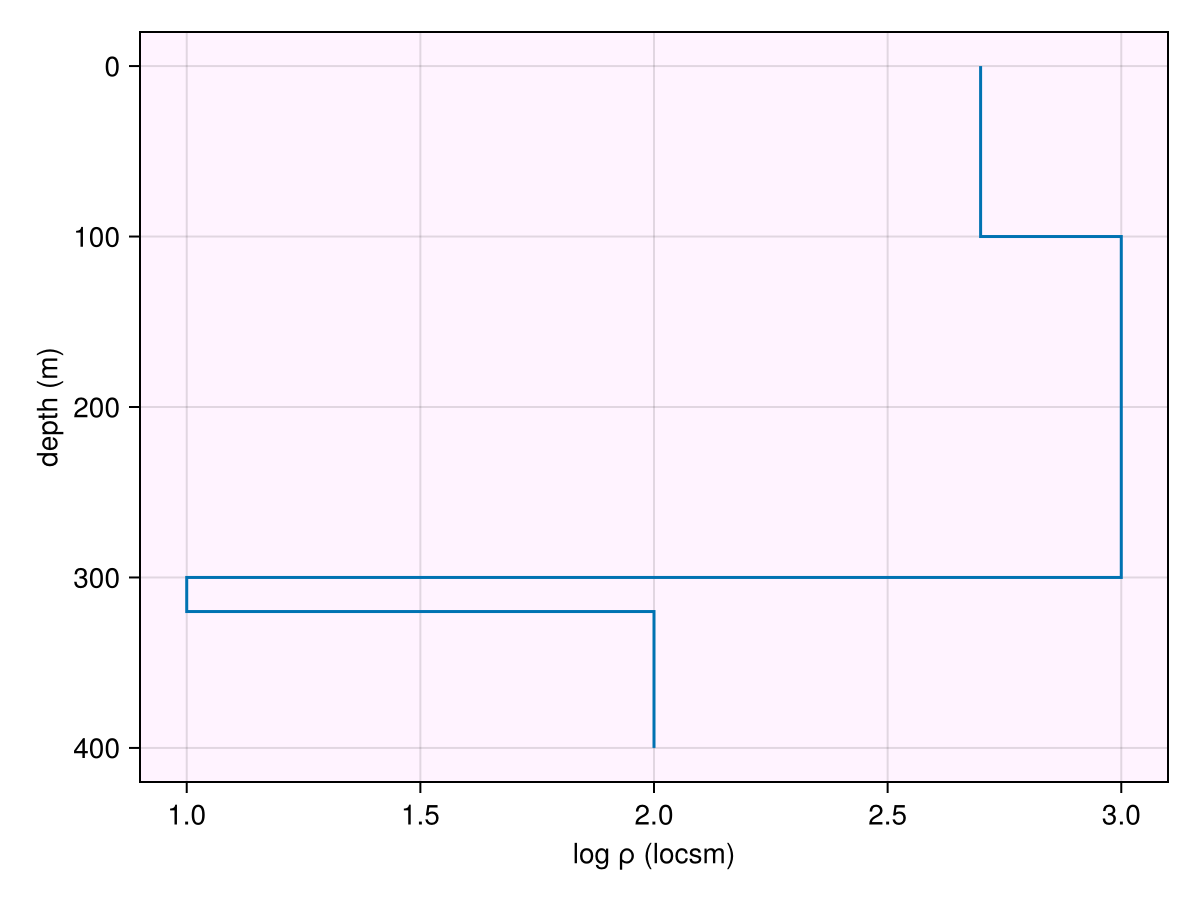

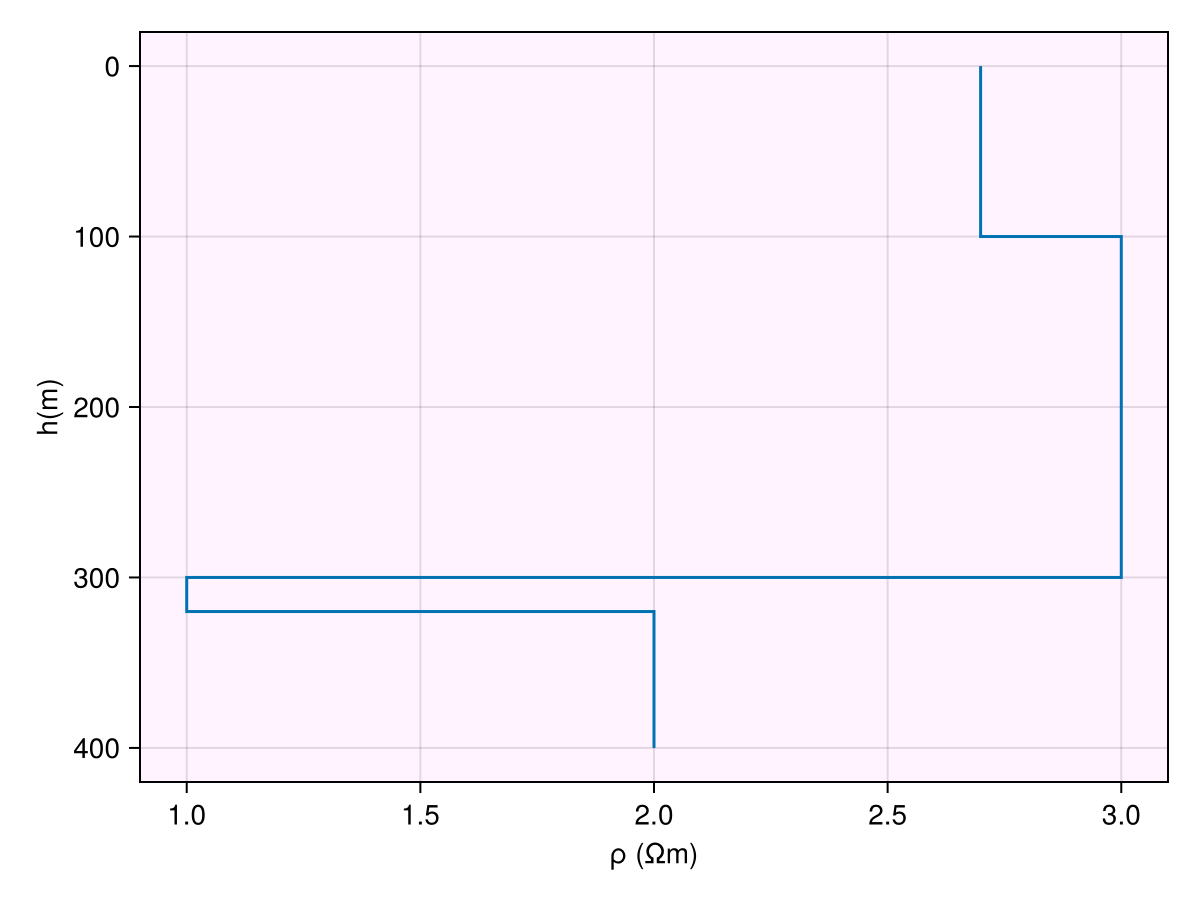

Code for this figure

fig = Figure()
ax = Axis(fig[1, 1]; xlabel="log ρ (log Ωm)", ylabel="depth (m)", backgroundcolor=(
    :magenta, 0.05))

plot_model!(ax, m)

Warn

Always use Float64 or Float32 types while defining the vectors for resistivity and thickness. Using Int will throw an InexactError, e.g. : InexactError: Int64(4193.453970907305)

Response

To obtain the responses, that is apparent resistivity ρₐ, we first need to define the current source and electrodes (receivers) locations. We provide two most common source receiver configurations

PrISM.get_schlumberger_array Function

get_schlumberger_array(a, n)

returns electrode spacings for Schlumberger array :

M ←na→ A ←a→ B ←na→ N

Arguments

• a : electrode spacing AB

• n : vector of numbers corresponding to spacing

Usage : TODO

source

PrISM.get_wenner_array Function

get_wenner_array(a)

returns electrode spacings for Wenner array :

M ←a→ A ←a→ B ←a→ N

Arguments

• a : vector of electrode spacing AB

Usage

TODO

source

Here, we demonstrate using the Wenner array for a vertical sounding survey:

locs = get_wenner_array(100:50:2000)

(recs = [-50.0 50.0; -75.0 75.0; … ; -975.0 975.0; -1000.0 1000.0], srcs = Float32[-150.0 150.0; -225.0 225.0; … ; -2925.0 2925.0; -3000.0 3000.0])

and then call the forward dispatch as usual to get DCResponse:

resp = forward(m, locs)

DCResponse{Vector{Float64}}([554.0979075768546, 596.0697919837345, 615.6503568706282, 610.9917723112081, 587.7732852578923, 552.6733686004528, 511.28659870238715, 467.72190083775365, 424.7498699564668, 384.09534170725516  …  114.01883696503232, 112.33447601007096, 110.89607729747706, 109.66998284796625, 108.62494609466799, 107.7312362641314, 106.96272141067718, 106.29731596803161, 105.71409354993084, 105.19324807792805])

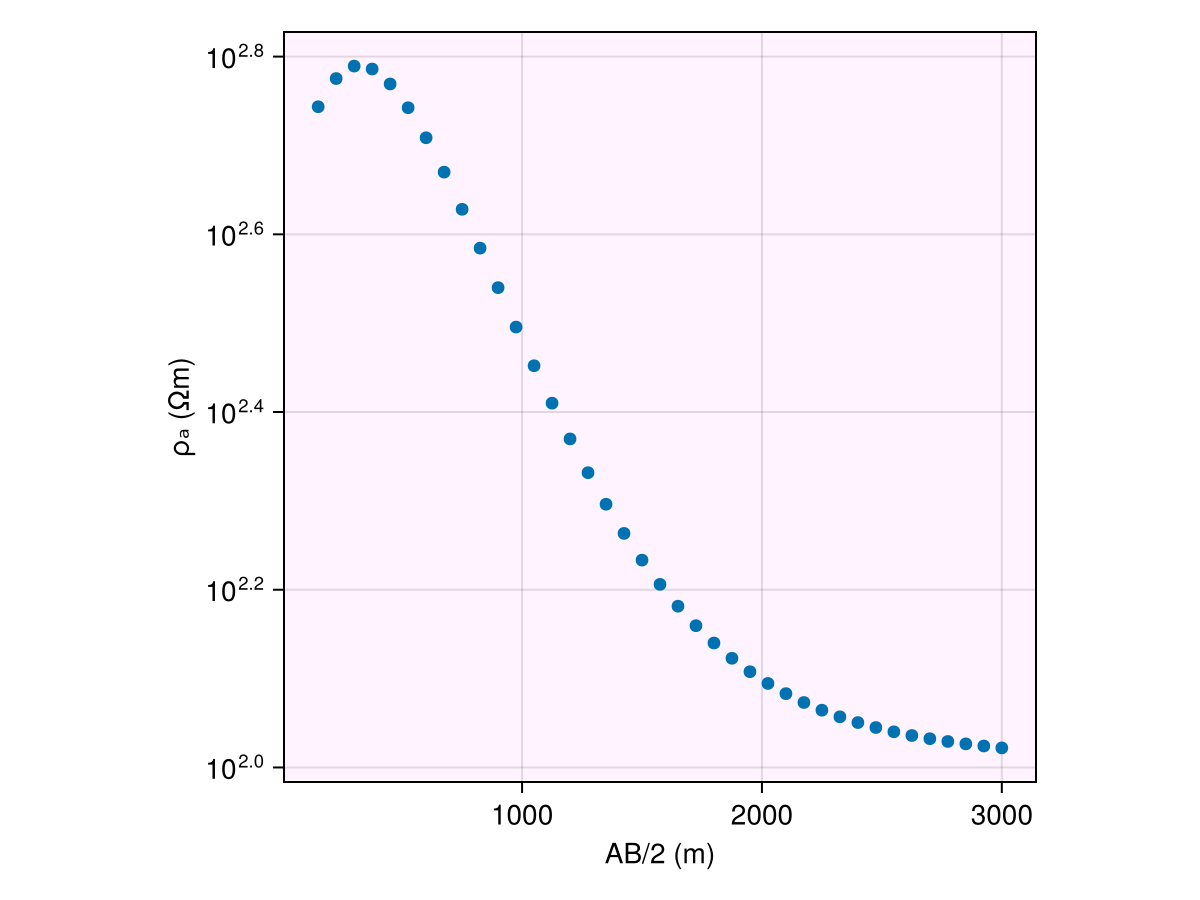

Code for this figure

fig = Figure() #size = (800, 600))
ax1 = Axis(fig[1, 1]; backgroundcolor=(:magenta, 0.05), aspect=AxisAspect(1))

ab_2 = abs.(locs.srcs[:, 2] .- locs.srcs[:, 1]) ./ 2
plot_response!([ax1], ab_2, resp; plt_type=:scatter)

In-place operations

Mutating forward calls are also supported. This leads to no extra allocations while calculating the forward responses. This also speeds up the performance, though the calculations in the well-optimized forward calls are way more expensive than allocations to get a significant boost here. We now call the in-place variant forward! and provide a DCResponse variable to be overwritten :

forward!(resp, m, locs)

We can compare the allocations made in the two calls:

@allocated forward!(resp, m, locs)

20928

@allocated forward(m, locs)

21312

Benchmarks

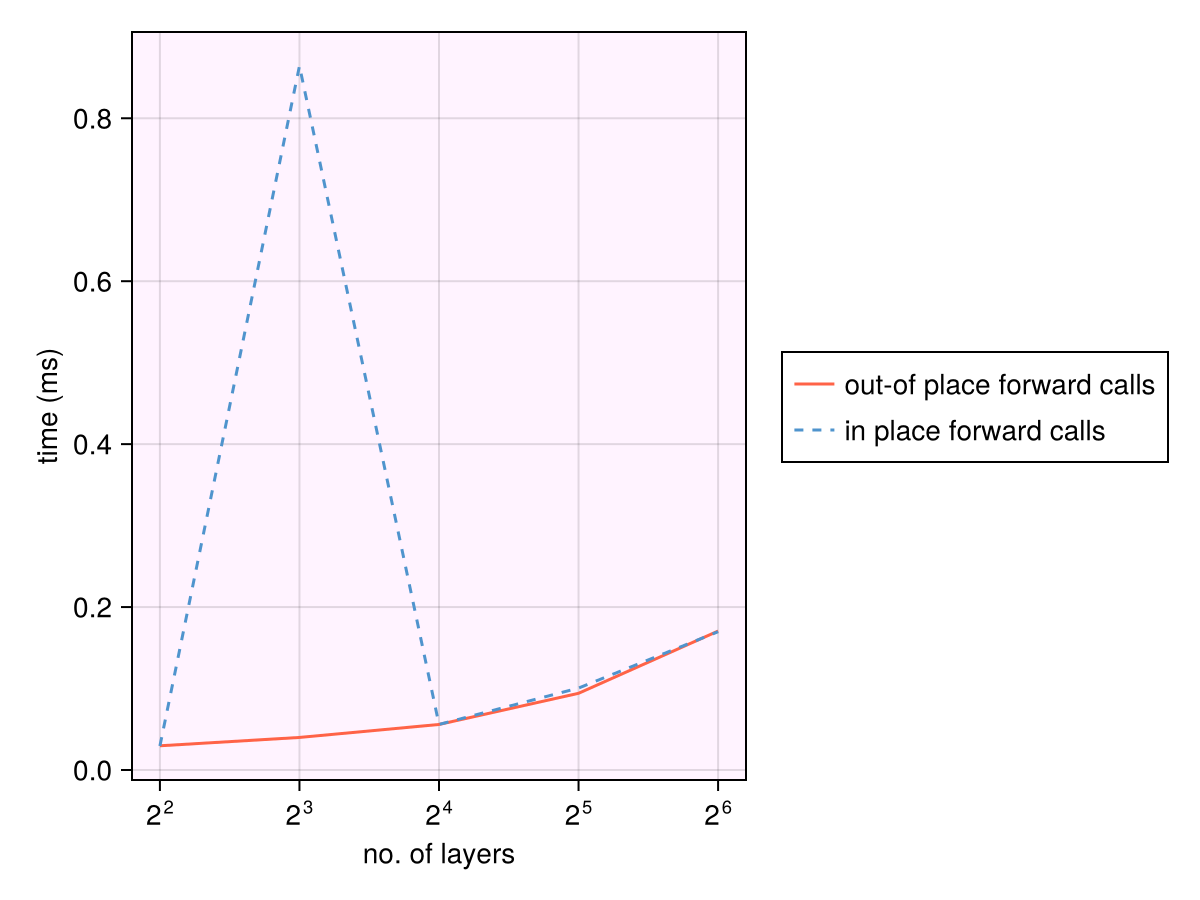

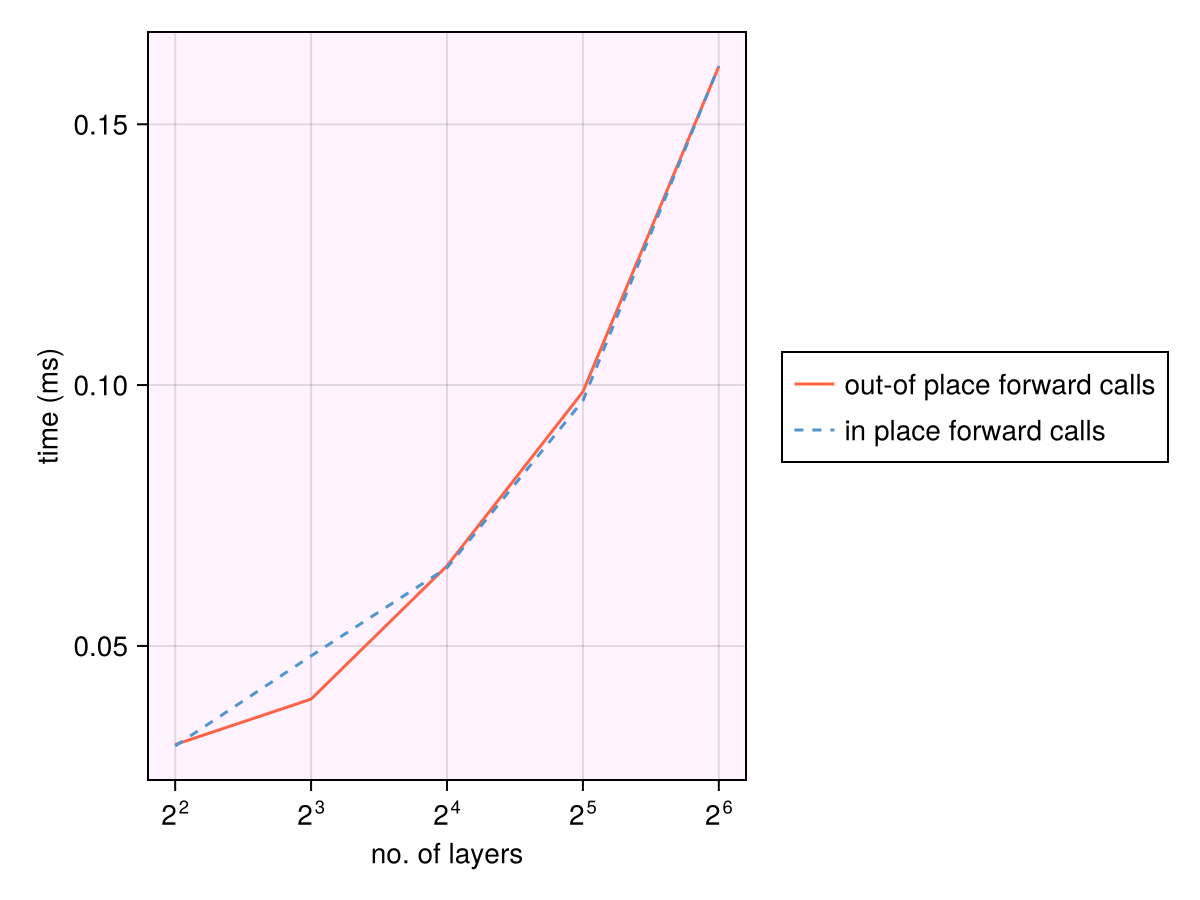

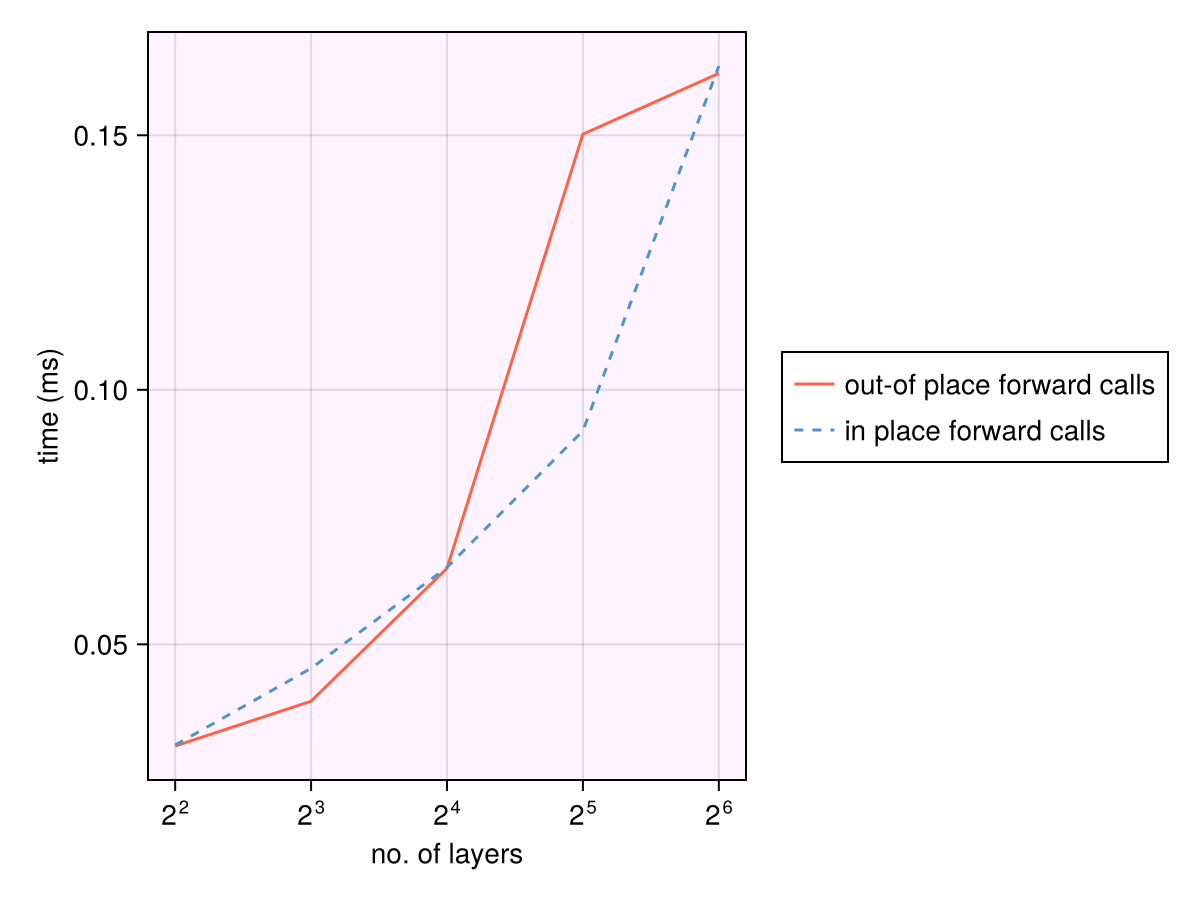

While the exact runtimes will vary across processors, the runtimes increase linearly with number of layers.

Benchmark code

n_layers = Int.(exp2.(2:1:6))
locs = get_wenner_array(100:50:2000)

btime_iip = Float64.(zero(n_layers))
btime_oop = Float64.(zero(n_layers))
for i in eachindex(n_layers)
    ρ = 2 .* randn(n_layers[i])
    h = 100 .* rand(n_layers[i]-1)
    m = DCModel(ρ, h)
    resp = forward(m, locs)
    time_oop = @timed begin
        for i in 1:1000
            forward(m, locs)
        end
    end
    btime_oop[i] = time_oop.time/1e3
    forward!(resp, m, locs)
    time_iip = @timed begin
        for i in 1:1000
            forward!(resp, m, locs)
        end
    end
    btime_iip[i] = time_iip.time/1e3
end

fig = Figure()
ax = Axis(fig[1, 1]; xscale=log2, backgroundcolor=(:magenta, 0.05),
    xlabel="no. of layers", ylabel="time (ms)")
lines!(n_layers, btime_oop .* 1e3; label="out-of place forward calls", color=:tomato)
lines!(n_layers, btime_iip .* 1e3; label="in place forward calls",
    linestyle=:dash, color=:steelblue3)
Legend(fig[1, 2], ax)

┌ Warning: Assignment to `ρ` in soft scope is ambiguous because a global variable by the same name exists: `ρ` will be treated as a new local. Disambiguate by using `local ρ` to suppress this warning or `global ρ` to assign to the existing global variable.
└ @ dc.md:127
┌ Warning: Assignment to `h` in soft scope is ambiguous because a global variable by the same name exists: `h` will be treated as a new local. Disambiguate by using `local h` to suppress this warning or `global h` to assign to the existing global variable.
└ @ dc.md:128
┌ Warning: Assignment to `m` in soft scope is ambiguous because a global variable by the same name exists: `m` will be treated as a new local. Disambiguate by using `local m` to suppress this warning or `global m` to assign to the existing global variable.
└ @ dc.md:129
┌ Warning: Assignment to `resp` in soft scope is ambiguous because a global variable by the same name exists: `resp` will be treated as a new local. Disambiguate by using `local resp` to suppress this warning or `global resp` to assign to the existing global variable.
└ @ dc.md:130

Reproducibility

The above benchmarks were obtained on AMD EPYC 9V74 80-Core Processor
